Description
Design Flexibility
Can be designed as a mounted skid unit
Can be delivered modular, so you can put the components where you have space
Dependable Service
SECO offers qualified, experienced service technicians to troubleshoot and perform Preventative Maintenance on your centrifuge and other skid components

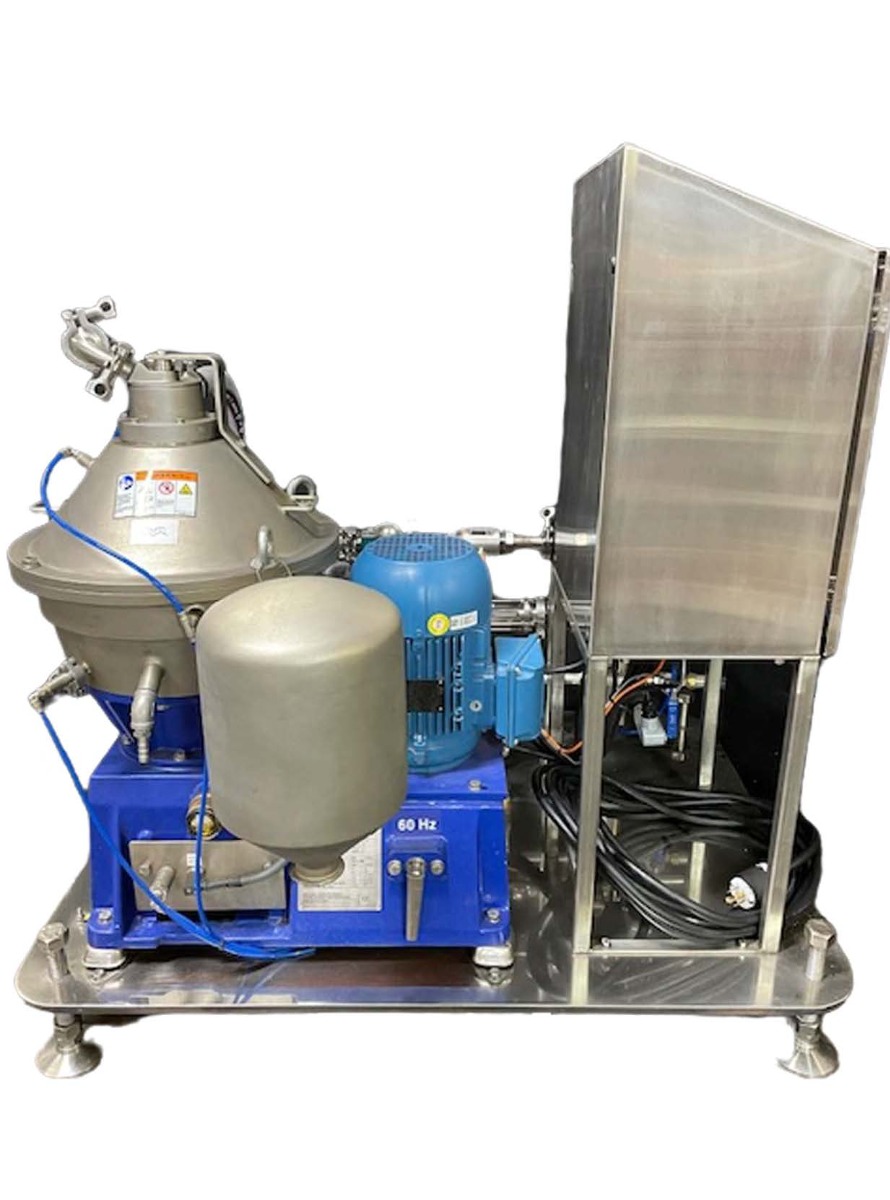

Compact Centrifuge
- Hermetic, airtight outlet to prevent DO pickup
- Solids Ejecting, fully CIP-able design
- Design Flow Rate up to 6 GPM (11.2 bbl/hr)
- 4 Foot by 3 foot Stainless Steel base
- Horner Control Panel – All-In-One PLC/HMI – 230/460 Optional Voltage
Customer Requirements:
- Power to Unit 230/460 3 Phase
- FIltered Water (40 psi minimum)
- Compressed Air (80 psi minimum)
- Beer!
Piping Module Including:
- 1″ Sanitary Tri-Clamp Inlet/Outlet
- Air Actuated Feed Valve
- Flow Meter
- Inlet and Outlet Sight Glasses
- Flow Rate Control Valve
- Back Pressure Control Valve
- Control Solenoids
- Flexible Feed and Discharge Hoses
- (Optional) Outlet Turbidity Monitoring
