Alfie 500

Description

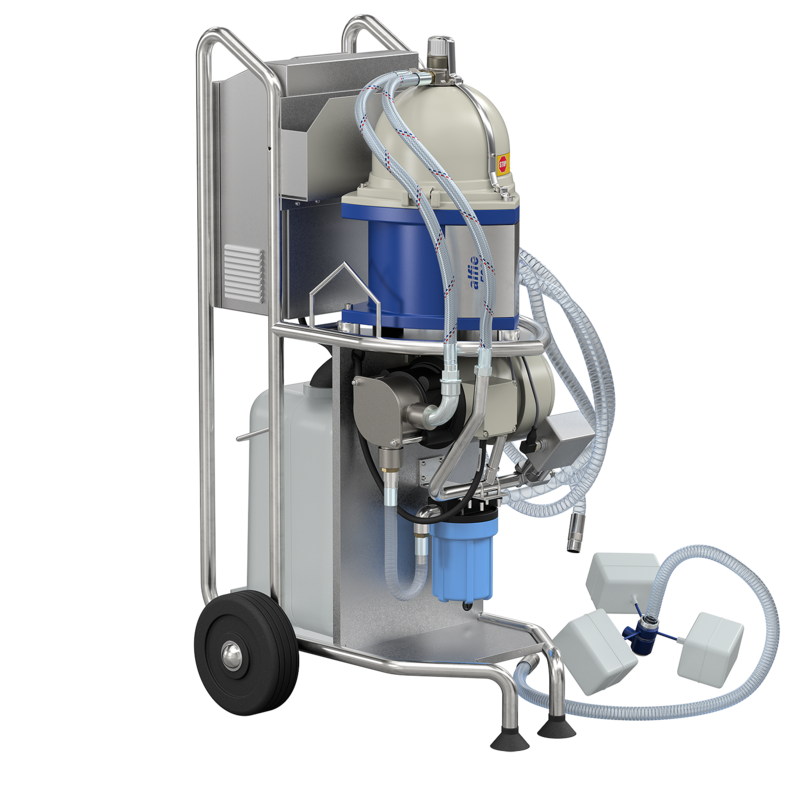

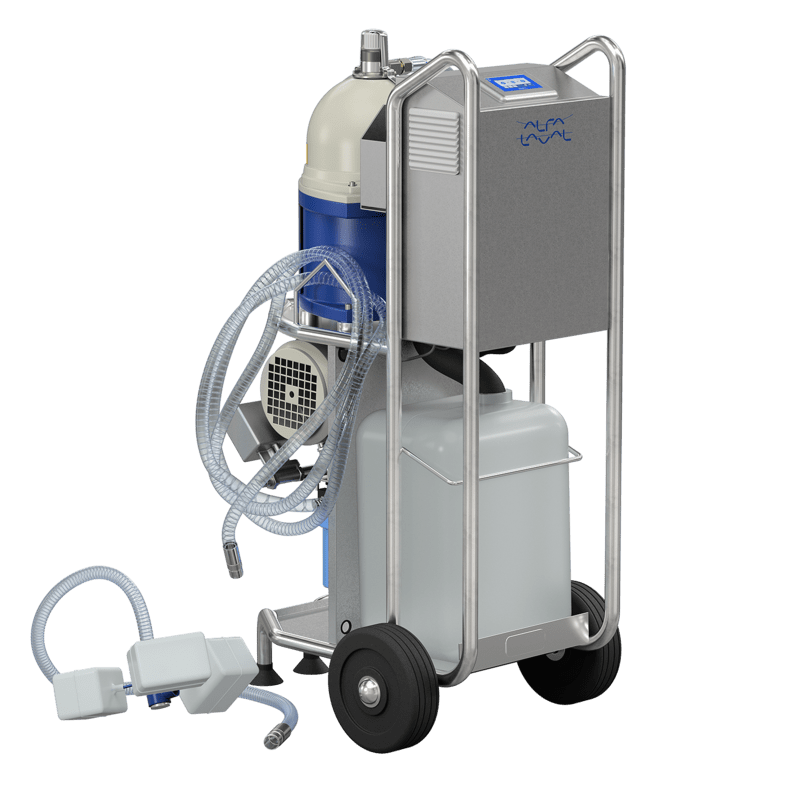

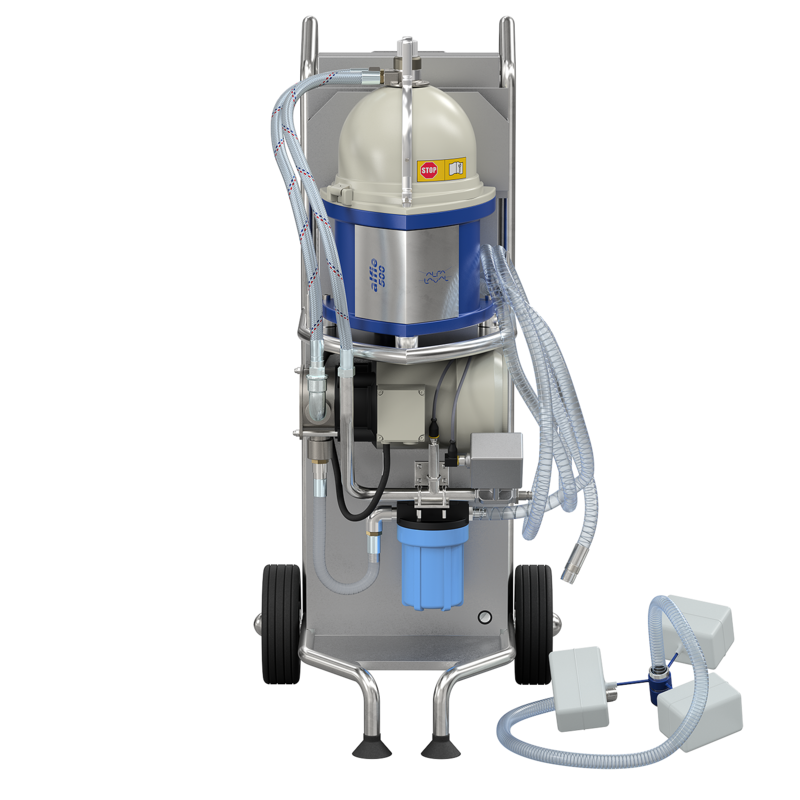

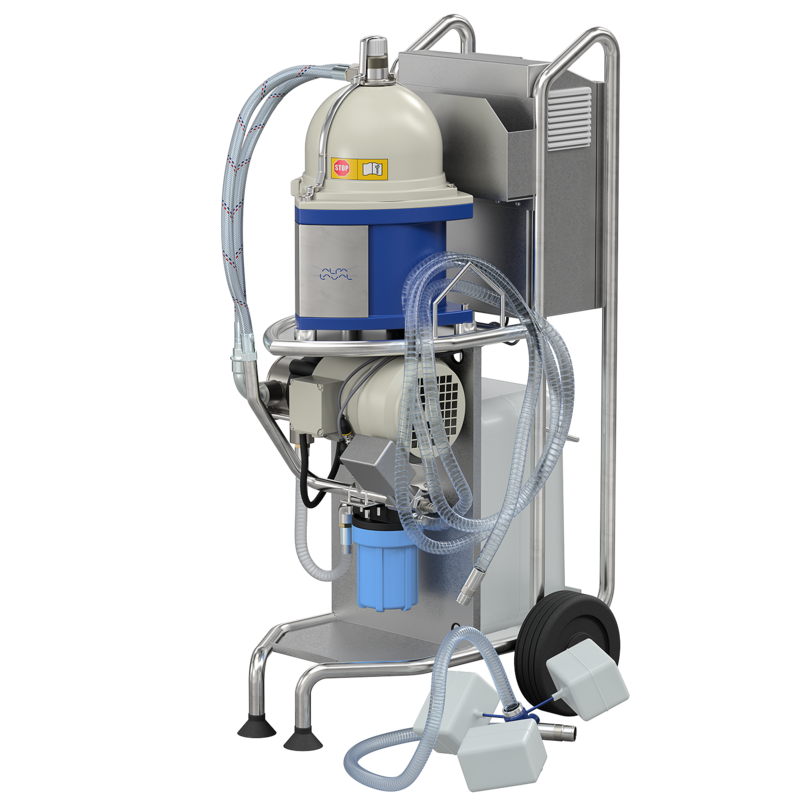

The Alfa Laval Alfie 500 module efficiently removes contaminating oil, grease and particulates from metal cutting coolants and wash fluids. The separator module reduces fluid consumption, lowers disposal costs and improves both product quality and the work environment. Alfie 500 is a complete compact system, including the separator, feed pump and control system. The control panel makes the PLC based control system easy to operate, while the symbols and messages in clear text are easy to understand. The Alfie 500 has a high capacity-to-size ratio, handling tanks up to 4000 gallons. The module is typically installed in a bypass mode and operates continuously. Quick couplings make it easy to connect the hoses when the cleaning unit is moved from tank to tank. With its compact and ergonomic design, Alfie 500 is easy to move across the workshop floor and can be used to serve one or several tanks. This unit includes a floating suction wwwice, a set of tools, test report, certificate of origin and test manual. The floating suction wwwice is recommended for deeper tanks with a liquid depth of 4 inches or more. The unit comes with 12 months warranty from start-up or eighteen (18) months from delivery, whichever occurs first.
