Alfa Laval CR 750

CR separators are specially tailored for delicate separation
tasks within citrus products processing. The unique hermetic
design assures zero oxidation, maximized product yield and
quality, gentle product handling and considerable reduction of
power consumption.

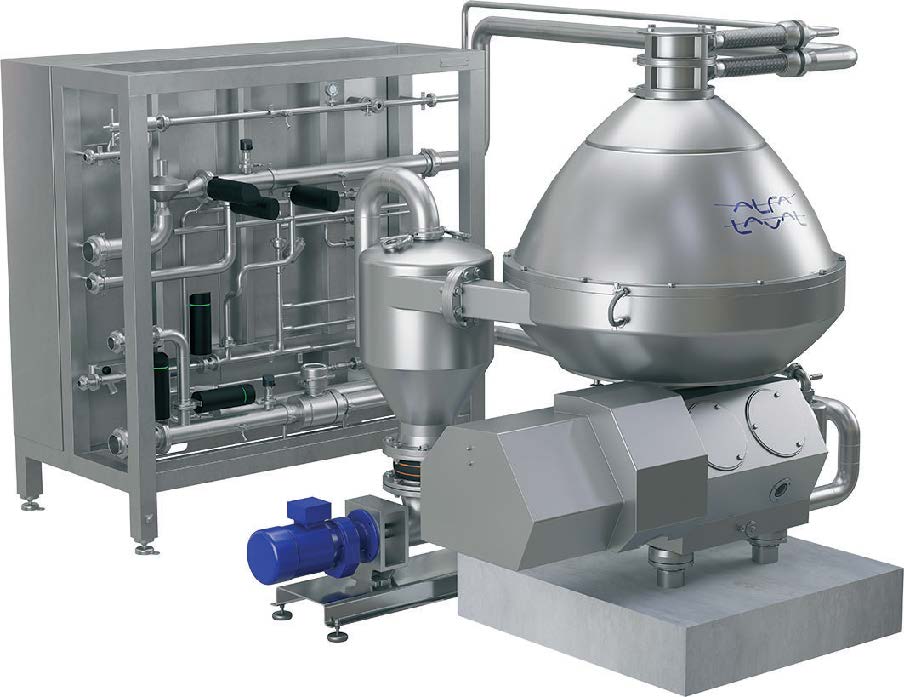

The CR 750 separation system consists of a separator, a
process & service liquid unit, and an electrical & control
system.

The disc stack separator is based on the Alfa Laval fully
hermetic concept with bottom fed design. The design ensures
gentle acceleration of the feed, which minimizes the splitting
of the shear-sensitive oil droplets and maximizes the
separation performance. The mechanical seal on the bowl
ensures no foaming and no oxidation of the product and it
also prevents loss of aroma.

Adjustable discharge volume, in combination with the timerbased
triggering function, ensures discharge of solids with
high dry matter content, thus minimizing product losses and
resulting in a clean bowl and reliable operation.
The bowl casing is jacketed for cooling and sound
dampening.

The system is modularized and can be configured from a
selection of basic and other optional standardized units and
control functions.

The control system includes a PLC and a user-friendly HMI to
monitor and control the separation process parameters. The
system can be configured for remote operation.

All metallic parts in contact with the process liquid are made
of high-grade stainless steel. Gaskets and seals in contact
with the product are made of FDA approved material and are
approved according to food regulations (EC1935/2004).

The separation system is designed for automated Cleaning in
Place (CIP).
