Capacity:
650 l/h rated capacity, 450 l/h diesel oil.

Features:
Built-on feed and discharge pump. Hinged frame hood facilitates easy access for cleaning the bowl.

Features:
Compact design allows for simple refit installation as well as original equipment. New design allows cleaning of the bowl in minutes. No internal lubrication means less maintenance and consumable parts.

Features:
Stainless Steel bowl shell and disc stack. Built on feed pump. Clean oil outlet device with sight glass.

Features:
Stainless Steel bowl shell and disc stack. Built on feed pump. Clean oil outlet device and water outlet device with sight glass.

Features:
Compact, robust design. Large sludge space with removable sludge basket. Belt driven machine reduces moving parts and consumable parts.

Features:
Compact, robust design. Large sludge space with removable sludge basket. Belt driven machine reduces moving parts and consumable parts.

Capacity:
Maxflow,50/60Hz 170/200 l/h(0.75/0.88gpm) Sludge space 0.7 l (0.18 gal)

Features:
Mobile, compact and easy to use. Cleaning takes only five minutes.

Hydraulic capacity:
Maximum 10,6m 3/h

Process capacity:
Maximum oil flow at the maximum permissible oil density 991kg/m 3 at 15°C.

Features:
The MMPX series is a self cleaning centrifuge. Solids are ejected periodically via a controlled partial discharge. Virtually no oil losses due to rapid sludge discharge action.

A small and compact system with well proven components.

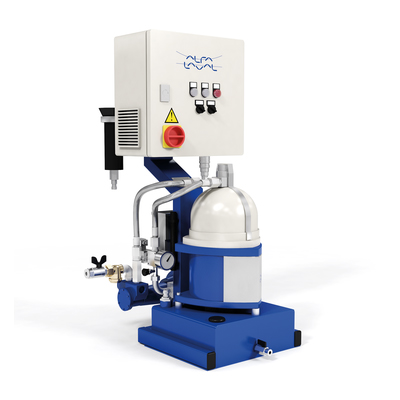

The Purifier Unit combines a separator and its ancillary components, together with control system and starter box, in a fully integrated modular design on its own base plate. It can be further combined with a unit for heating and pumping to form a System Module.
